DEADBOLT

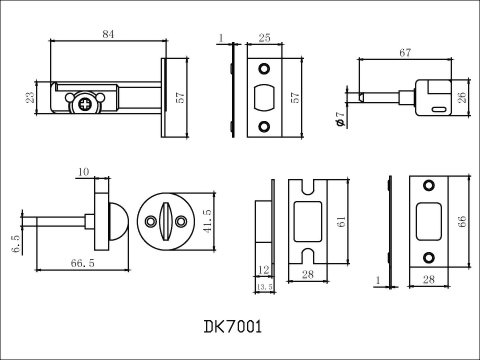

Model : DK7001

Outside the package: ø 42 mm
Hole for the lock body: 12 mm
Applicable door thickness: 30~42 mm (can be customized to thicken)
Locking distance: 60 mm
                              51 mm (customized product)

Material: Zinc alloy
Color: white iron brush line
           Fog black
           Aluminum color (order to order)

Related Products

Concealed tube well lock

Concealed tube well lock

DEADBOLT LOCK

DEADBOLT LOCK

DEADBOLT LOCK

DEADBOLT LOCK

DOOR LOCK, 31-51MM

DOOR LOCK, 31-51MM

DOOR LOCK, 35-45MM

DOOR LOCK, 35-45MM

Room level lock + auxiliary lock

Room level lock + auxiliary lock

Concealed cross lock

Concealed cross lock

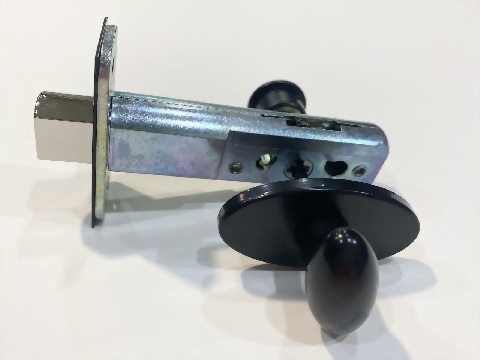

Half lock
