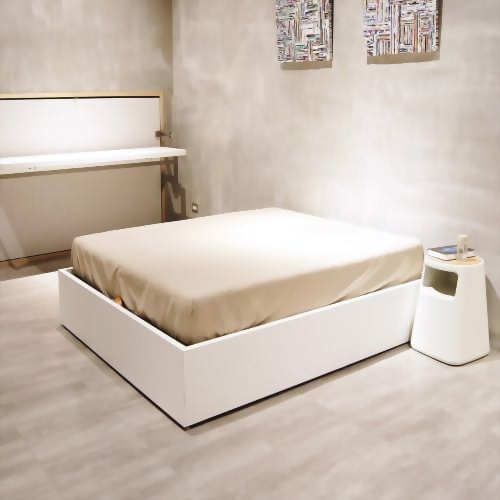

Orthopaedic metal base - folding in vertical with motorized mechanism
■Fully electric switch, the foot of the bed is automatically in place with one button

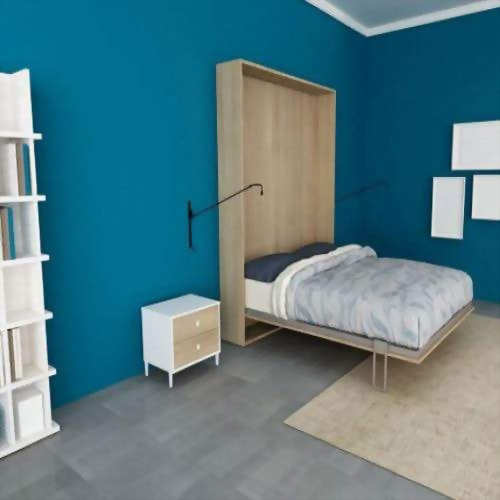

■Can be used with CLICK V double upright bed or SOFA linkage sofa set
■With remote control, the bed can be turned on and off without hands (it can also be turned on and off manually when the power is off)
Italy POZZOLI WATT positive lift bed cushion hardware + electric device
■Products include: electric lifting bed hardware device X1 set of legs X1 pair of ribs bed frame X1 set of remote control X1
| Item/Specification | PZ.CV5062-W1 double positive lift buffer hardware + electric device |
| Load | 200KG |
| Inside width of cabinet | 1596mm |
| Height from the inside of the top plate to the ground | 2055mm |
| Minimum depth of cabinet | Door thickness + back thickness +430mm |
| Door thickness | 20mm |
| Thickness of bottom plate | 38mm |
| Door size | 1570 x 1997mm |
| Spare ribs bed frame size | 1530X1920mm |
| Mattress thickness | 200mm |
| Total weight of mattress + bed board | 75KG (excluding ribs bed) |
| transformer | Voltage 110V |
| Item/Specification | PZ.CV3562-W1 single positive lift buffer hardware + electric device |
| Load | 150KG |
| Inside width of cabinet | 1126mm |
| Height from the inside of the top plate to the ground | 2055mm |
| Minimum depth of cabinet | Door thickness + back thickness +430mm |
| Door thickness | 20mm |
| Thickness of bottom plate | 38mm |
| Door size | 1100 x 1997mm |
| Spare ribs bed frame size | 1060X1920mm |
| Mattress thickness | 200mm |
| Total weight of mattress + bed board | 45KG (Excluding ribs bed) |
