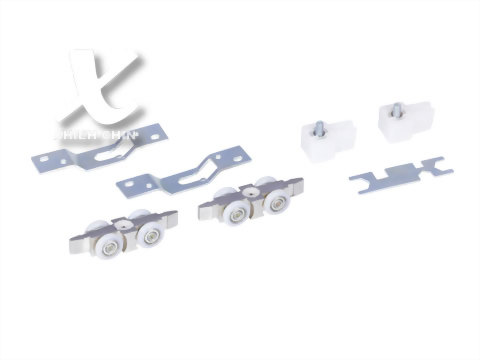

SUPER SILENT SLIDING DOOR WHEEL
Model :
DL1055
Load value: 200kg
747 silent load-type universal compartment pulley,
It is assembled by stainless steel body, imported bearing and compression ring.
Universal compartment slide rail and joint:
A set of positioning pins are provided at the appropriate position at one end of the rail, and at the other end of the slide rail
For the relative position, there is an assembly positioning hole to connect one of the slide rails to the positioning pin and the other rail end to connect to the positioning hole
Combined with each other, the two sections are assembled to complete the sliding track, and the track groove and the track groove produce a more precise connection.
747 silent load-type universal compartment pulley,
It is assembled by stainless steel body, imported bearing and compression ring.
Universal compartment slide rail and joint:
A set of positioning pins are provided at the appropriate position at one end of the rail, and at the other end of the slide rail
For the relative position, there is an assembly positioning hole to connect one of the slide rails to the positioning pin and the other rail end to connect to the positioning hole
Combined with each other, the two sections are assembled to complete the sliding track, and the track groove and the track groove produce a more precise connection.
