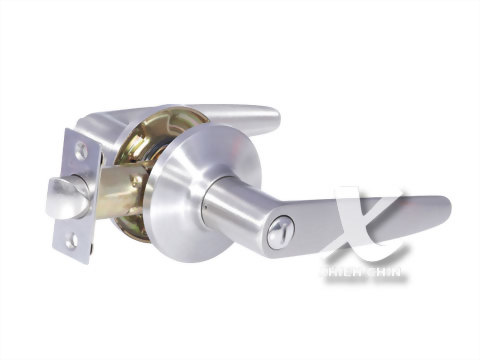

LEVELER LOCK

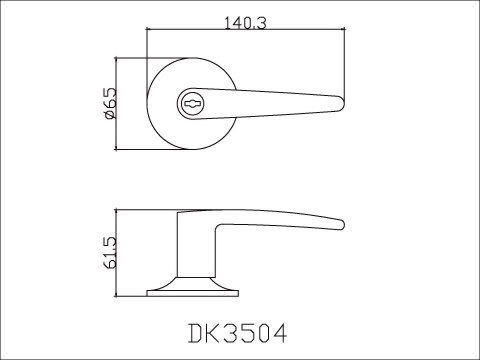

Model : DK3504

Color: stainless steel brushed silver (white iron)

Uses: living room, office, bedroom, passage door... etc.

Aperture 54 mm horizontal, speaker lock hole can be suitable for installation

Device distance (latch length): 60 mm

Applicable door thickness: 30 mm ~ 45 mm

The length of the handle is about 118 mm, and the hole diameter is about 54 mm

Enclosed: installation instructions + horizontal handle + gasket + screw pack

It can be used regardless of the sides, the inner side can be automatically unlatched, and the door can be opened by pressing
